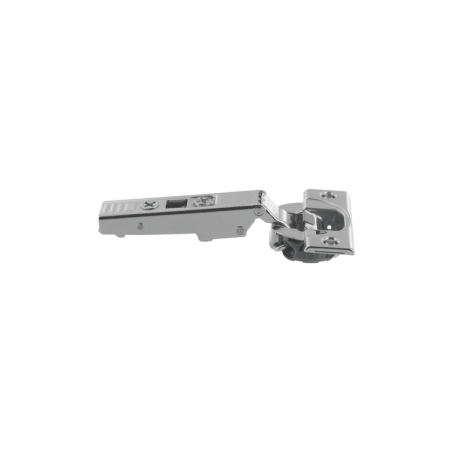

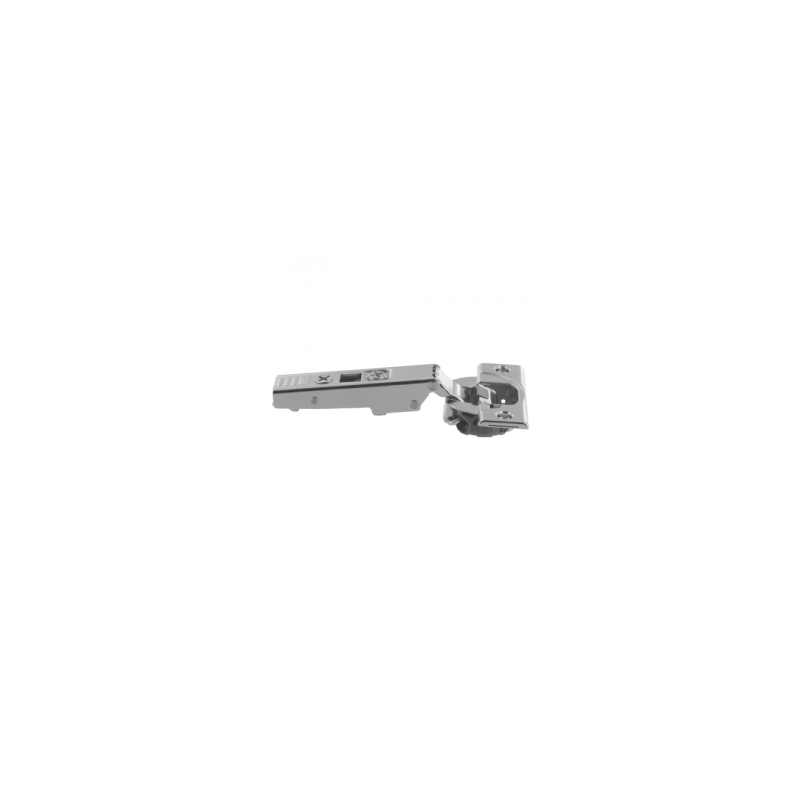

Hinge single Clip Top Blumotion 110

€6.00
Tax included

Hinge single Clip Top Blumotion 110. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase. Drilling diameter 35 mm.

Quantity
Last items in stock



Safety guarantees

Hinge single Clip Top Blumotion 110, reference CHA71B355. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

  • Manufacturer : Blum
  • Reference : CHA71B355
  • Drilling diameter : 35 mm

Check the fixing centre distance and drilling diameter on your existing door. If in doubt, contact us by email info@cuisinesrangementsbains.fr.

Dimensions and drawings

Blum reference71B3550
RangeCLIP top BLUMOTION (integrated damper)
Opening110°
InstallationFull overlay door
Cup drillingØ 35 mm, drilling distance TB 3 to 7 mm
AdjustmentsHeight ± 3 mm (depending on mounting plate) · lateral ± 2 mm · depth + 3 / − 2 mm
Cup fixingScrew-on
Dimensions and drawings – Hinge single Clip Top Blumotion 110Dimensions and drawings – Hinge single Clip Top Blumotion 110

Dimensions in mm, based on the Blum 2024/2025 catalogue. TB = cup drilling distance · FA = overlay · FD = front thickness · F = gap · MD = mounting plate distance.

CHA71B355
