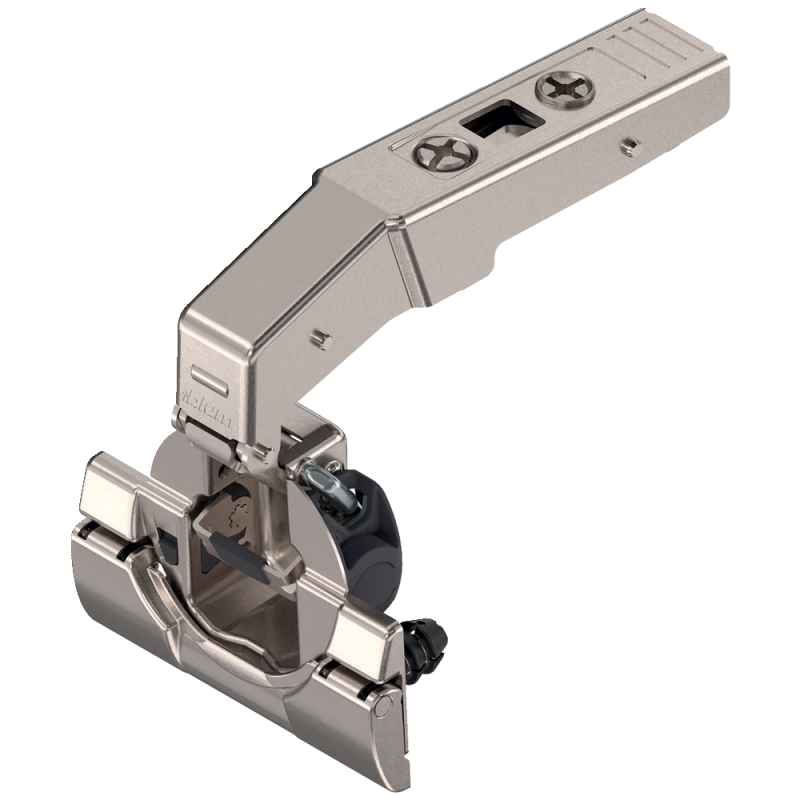

Blum hinge Clip Top door frame

€7.83

Blum hinge Clip Top door frame. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase. Drilling diameter 35 mm.

Quantity
Last items in stock



Safety guarantees

Blum hinge Clip Top door frame, reference CHA79T9550. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

  • Manufacturer : Blum
  • Reference : CHA79T9550
  • Drilling diameter : 35 mm

Check the fixing centre distance and drilling diameter on your existing door. If in doubt, contact us by email info@cuisinesrangementsbains.fr.

Dimensions and drawings

Blum reference79T9550
RangeCLIP top (with spring)
TypeHinge for flush (inset) door
InstallationFlush door
Opening95°
Cup drillingØ 35 mm, drilling distance TB 3 to 7 mm
Mounting plateStandard 3 mm mounting plate, offset 15.5 mm from frame edge · F = 8 mm − TB
AdjustmentsHeight ± 3 mm (depending on mounting plate) · lateral ± 2.5 mm · depth ± 1 mm
Cup fixingScrew-on
Dimensions and drawings – Blum hinge Clip Top door frameDimensions and drawings – Blum hinge Clip Top door frame

Dimensions in mm, based on the Blum 2024/2025 catalogue. TB = cup drilling distance · FA = overlay · FD = front thickness · F = gap · MD = mounting plate distance.

CHA79T9550
