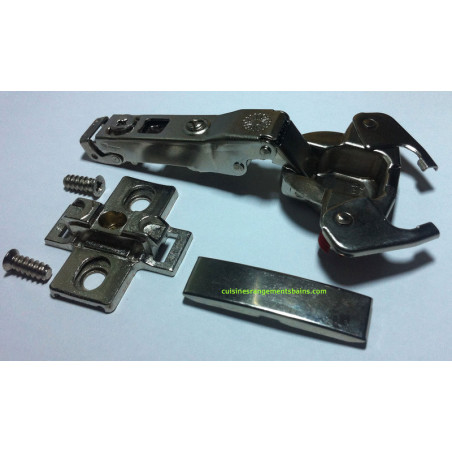

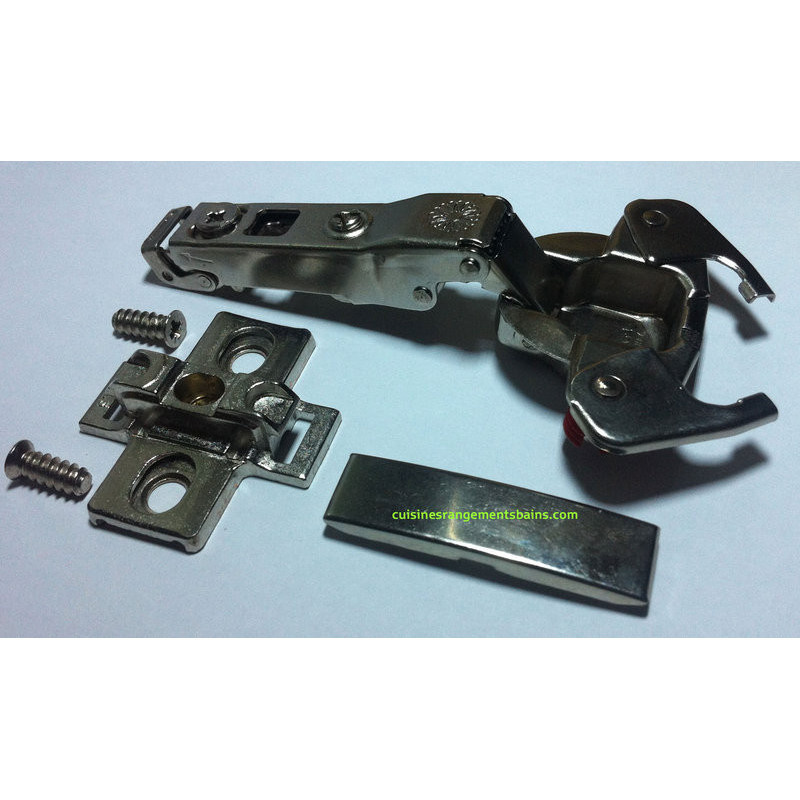

Kit 2 hinges Ferrari Butterfly

€6.20
€5.50 Save €0.70
Tax included

Kit 2 hinges Ferrari Butterfly. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase. Drilling diameter 35 mm.

Quantity
Awaiting supplier / Special order



Safety guarantees

Kit 2 hinges Ferrari Butterfly, reference C91505HGGWSK417. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

  • Manufacturer : Ferrari
  • Reference : C91505HGGWSK417
  • Drilling diameter : 35 mm

Check the fixing centre distance and drilling diameter on your existing door. If in doubt, contact us by email info@cuisinesrangementsbains.fr.

Dimensions and drawings

Manufacturer referenceC91505HGGWSK417 (Ferrari)
TypeAnyway Clip hinge Ø 35 mm (kit of 2)
Opening110°
ArmSlightly cranked (crank 3)
Mounting plate heightH = 14 + D − S
Fixing hole spacing A48 mm (B = 6 mm)
Cup fixingTool-free “Digit” system, Ø10 mm drillings
Depth adjustmentBy cam
Internal space requirementSee drawing (110° opening)
Dimensions and drawings – Kit 2 hinges Ferrari Butterfly

Dimensions in mm, based on the Ferrari catalogue. H = mounting plate height · D = cup drilling distance · S = overlay · F = gap · T = door thickness.
