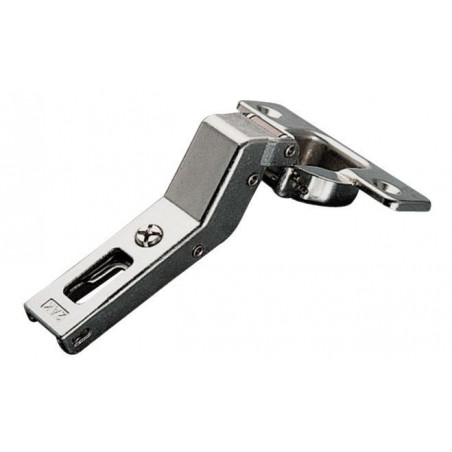

Salice hinge 45° 2am without mounting plate

€6.30
Tax included

Salice hinge 45° 2am without mounting plate. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase. Opening angle 45°, drilling diameter 35 mm.

Quantity
Last items in stock



Safety guarantees

Salice hinge 45° 2am without mounting plate, reference 32996605. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

  • Manufacturer : Salice
  • Reference : 32996605
  • Opening angle : 45°
  • Drilling diameter : 35 mm

Check the fixing centre distance and drilling diameter on your existing door. If in doubt, contact us by email info@cuisinesrangementsbains.fr.

Dimensions and drawings

Manufacturer referenceC2A7M99 (Salice)
TypeSeries 200 hinge for special angle applications
Opening angle between doors135° to 160° depending on mounting plate used (see drawing)
Recommended mounting platesB2V3B09/15, B2V3BW9R/15, B2V3BW9/15, B2V3BW9S/15
CupØ 35 mm
Dimensions and drawings – Salice hinge 45° 2am without mounting plate

Dimensions in mm, based on the Salice catalogue. H = mounting plate height · K = cup drilling distance · D = overlay · A = gap · T = door thickness · L = setback.

32996605
