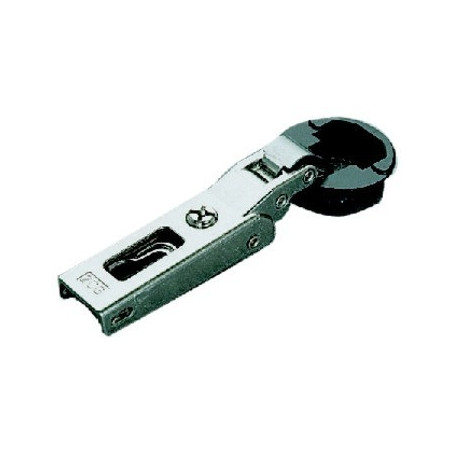

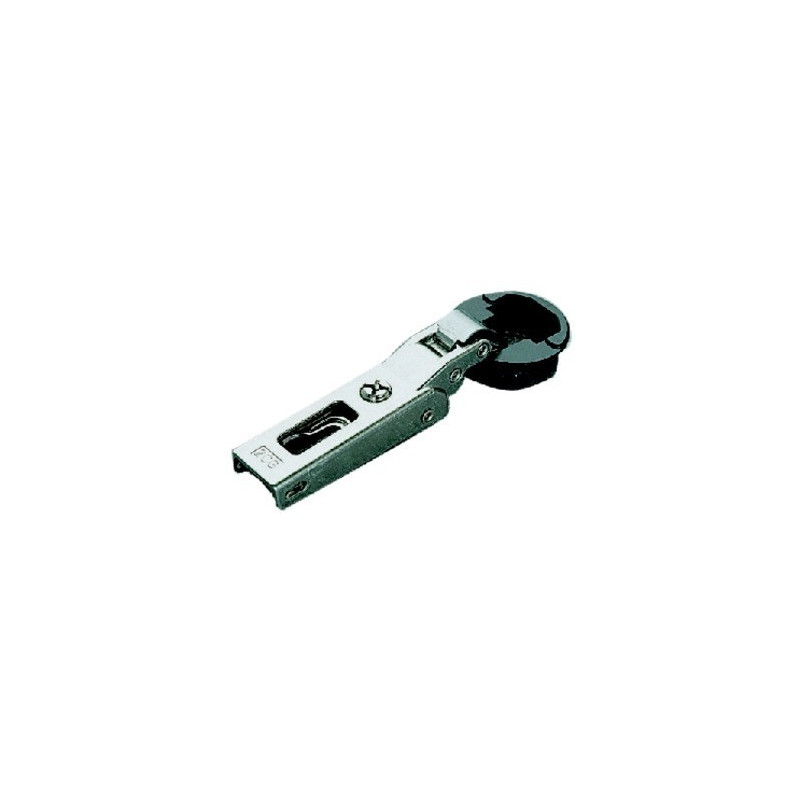

Salice hinge door glass without mounting plate

€3.50
Tax included

Salice hinge door glass without mounting plate. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase. Fitting type Glass door, drilling diameter 35 mm.

Quantity
Last items in stock



Safety guarantees

Salice hinge door glass without mounting plate, reference 32921511. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

  • Manufacturer : Salice
  • Reference : 32921511
  • Fitting type : Glass door
  • Drilling diameter : 35 mm

Check the fixing centre distance and drilling diameter on your existing door. If in doubt, contact us by email info@cuisinesrangementsbains.fr.

Dimensions and drawings

Häfele reference329.21.511 (Salice hinge)
RangeSalice Series 200 for glass door
Opening94°
Glass drillingØ 26 mm
Glass thickness4 to 6 mm
Drilling distance K5.5 to 6.5 mm
Mounting plate height HArm 0: H = 12.5 + K − D · Arm 5: H = 7.5 + K − D · Arm 9: H = 3.5 + K − D · Arm 17: H = −4.5 + K + A
Dimensions and drawings – Salice hinge door glass without mounting plate

Dimensions in mm, based on the Salice catalogue. H = mounting plate height · K = cup drilling distance · D = overlay · A = gap · T = door thickness · L = setback.

32921511
