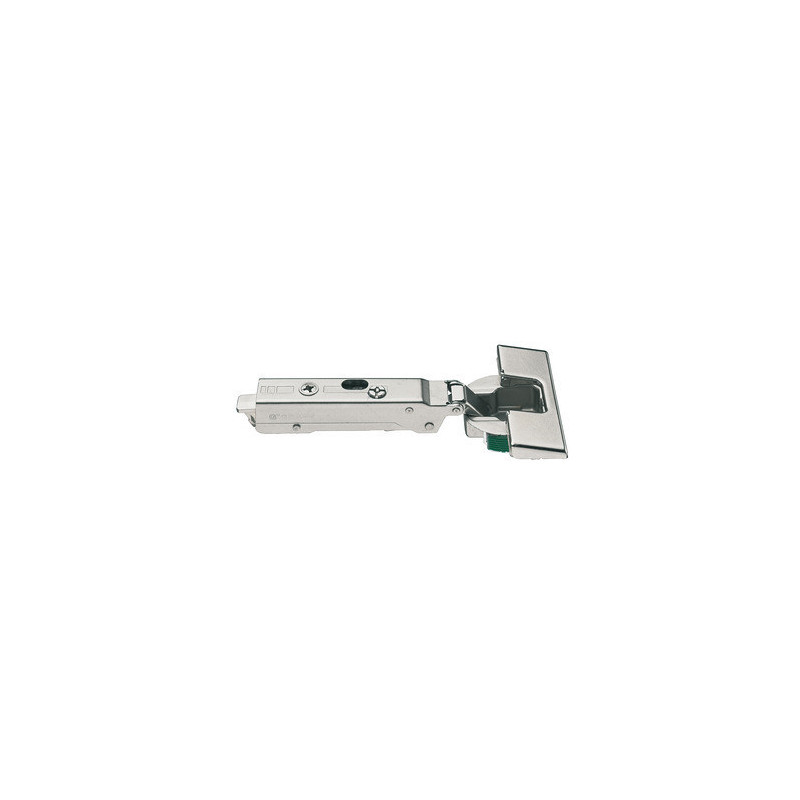

Grass hinge Tiomos 95° without Outils door full overlay

€8.10
Tax included

Grass hinge Tiomos 95° without Outils door full overlay. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase. Fitting type Full overlay door, opening angle 95°, drilling diameter 35 mm.

Quantity
Awaiting supplier / Special order



Safety guarantees

Grass hinge Tiomos 95° without Outils door full overlay, reference 34834731. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

  • Manufacturer : Grass
  • Reference : 34834731
  • Fitting type : Full overlay door
  • Opening angle : 95°
  • Drilling diameter : 35 mm

Check the fixing centre distance and drilling diameter on your existing door. If in doubt, contact us by email info@cuisinesrangementsbains.fr.

Dimensions and drawings

Häfele reference (Grass hinge)348.34.731
RangeTiomos 95
VersionFull overlay, tool-free mounting
Opening angle95°
Door thicknessup to 28 mm (optimum gaps)
Cup drillingØ 35 mm – fixing hole spacing 45 mm (9.5 mm) or 42 mm (Impresso), cup distance 3 to 7 mm
Adjustments3D adjustment with the corresponding mounting plate (depth via worm screw)
Dimensions and drawings – Grass hinge Tiomos 95° without Outils door full overlayDimensions and drawings – Grass hinge Tiomos 95° without Outils door full overlay

Dimensions in mm, based on the Grass “Hinge Systems” catalogue. F = gap, K = crank (overlay).

34834731
