Grass hinge Tiomos 95 ° mounting without Outil damper

€9.90
Tax included

Grass hinge Tiomos 95 ° mounting without Outil damper. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase. Opening angle 95°, drilling diameter 35 mm.

Quantity
Last items in stock



Safety guarantees

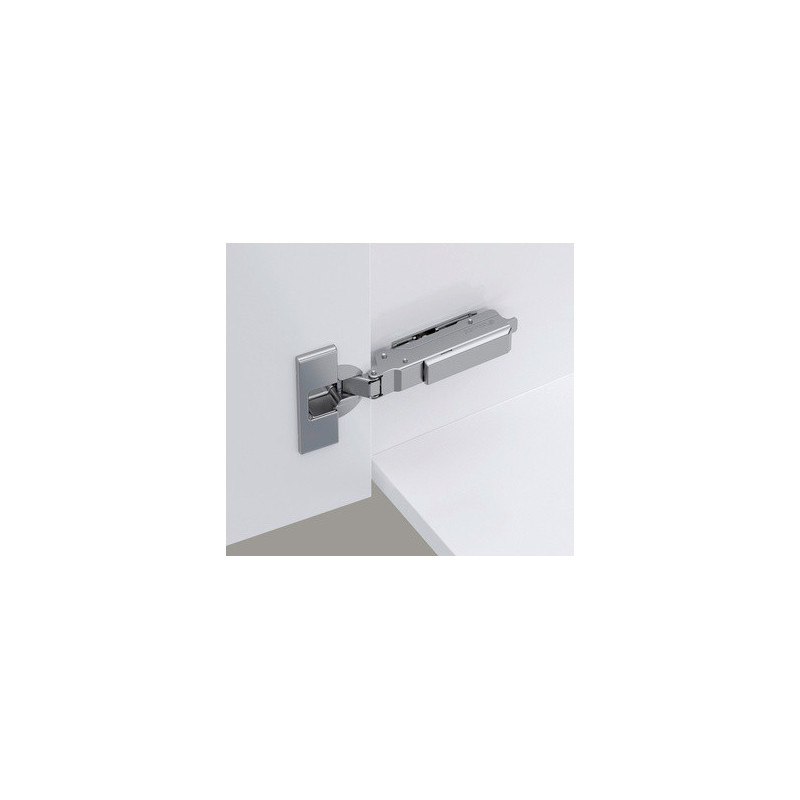

Grass hinge Tiomos 95 ° mounting without Outil damper, reference F017139439. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

  • Manufacturer : Grass
  • Reference : F017139439
  • Opening angle : 95°
  • Drilling diameter : 35 mm

Check the fixing centre distance and drilling diameter on your existing door. If in doubt, contact us by email info@cuisinesrangementsbains.fr.

Dimensions and drawings

Grass referenceF017139439
RangeTiomos 95
VersionFull overlay (K3), integrated damper, tool-free cup mounting (Impresso)
Opening angle95°
Door thicknessup to 28 mm (optimum gaps)
Cup drillingØ 35 mm – fixing hole spacing 45 mm (9.5 mm) or 42 mm (Impresso), cup distance 3 to 7 mm
Adjustments3D adjustment with the corresponding mounting plate (depth via worm screw)
Dimensions and drawings – Grass hinge Tiomos 95 ° mounting without Outil damperDimensions and drawings – Grass hinge Tiomos 95 ° mounting without Outil damper

Dimensions in mm, based on the Grass “Hinge Systems” catalogue. F = gap, K = crank (overlay).

F017139439
