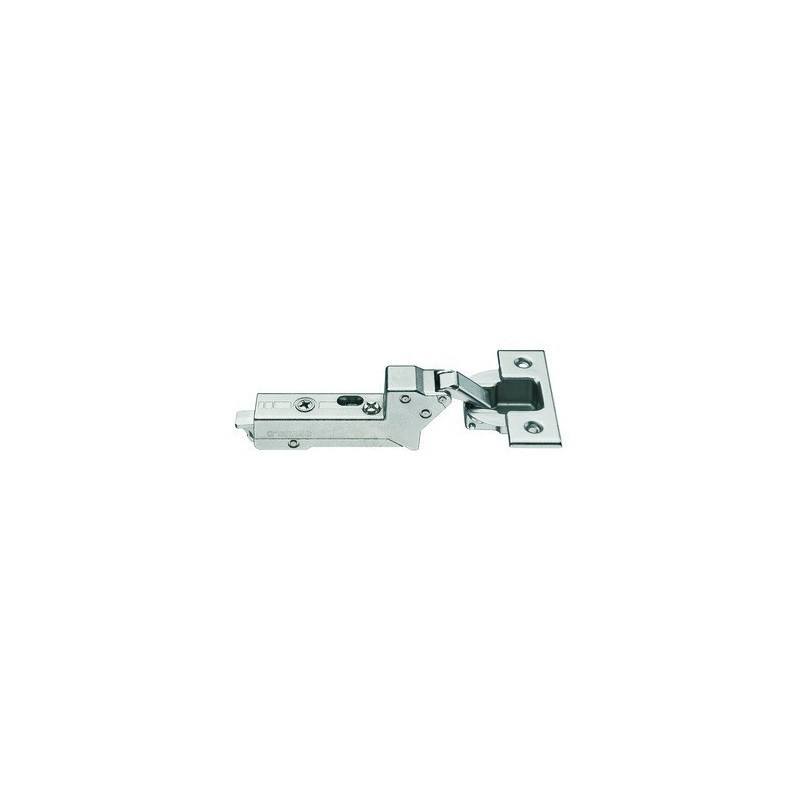

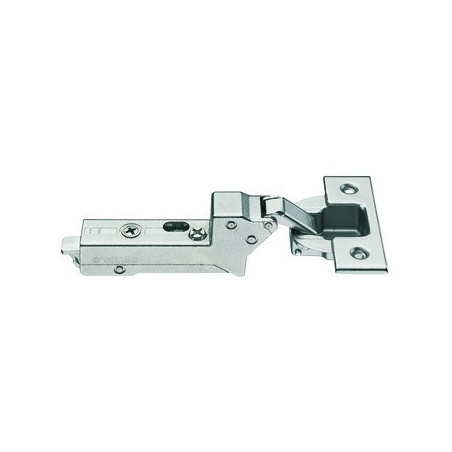

Grass hinge Tiomos 110° negative angle door

€6.90
Tax included

Grass hinge Tiomos 110° negative angle door. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase. Fitting type Inset door, opening angle 110°, drilling diameter 35 mm.

Quantity
Last items in stock



Safety guarantees

Grass hinge Tiomos 110° negative angle door, reference 34831503. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

  • Manufacturer : Grass
  • Reference : 34831503
  • Fitting type : Inset door
  • Opening angle : 110°
  • Drilling diameter : 35 mm

Check the fixing centre distance and drilling diameter on your existing door. If in doubt, contact us by email info@cuisinesrangementsbains.fr.

Dimensions and drawings

Häfele reference (Grass hinge)348.31.503
RangeTiomos 110
VersionInset (K19)
Opening angle110°
Door thicknessup to 24 mm (optimum gaps)
Cup drillingØ 35 mm – fixing hole spacing 45 mm (9.5 mm) or 42 mm (Impresso), cup distance 3 to 7 mm
Adjustments3D adjustment with the corresponding mounting plate (depth via worm screw)
CranksK0 full overlay · K3 overlay · K9.5 half overlay · K19 inset
Dimensions and drawings – Grass hinge Tiomos 110° negative angle doorDimensions and drawings – Grass hinge Tiomos 110° negative angle door

Dimensions in mm, based on the Grass “Hinge Systems” catalogue. F = gap, K = crank (overlay).
