Grass hinge and plate Tiomos 45° with damper

€13.95
Tax included

Grass hinge and plate Tiomos 45° with damper. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase. Opening angle 45°, drilling diameter 35 mm.

Quantity
Awaiting supplier / Special order



Safety guarantees

Grass hinge and plate Tiomos 45° with damper, reference 34835705. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

  • Manufacturer : Grass
  • Reference : 34835705
  • Opening angle : 45°
  • Drilling diameter : 35 mm

Check the fixing centre distance and drilling diameter on your existing door. If in doubt, contact us by email info@cuisinesrangementsbains.fr.

Dimensions and drawings

Häfele reference (Grass hinge)348.35.705
RangeTiomos 110/45 (45° corner cabinet)
VersionWith damper, supplied with mounting plate
Application45° angled cabinets
Opening angle110°
Cup drillingØ 35 mm – fixing hole spacing 45 mm (9.5 mm) or 42 mm (Impresso)
Adjustments3D adjustment with the corresponding mounting plate (depth via worm screw)

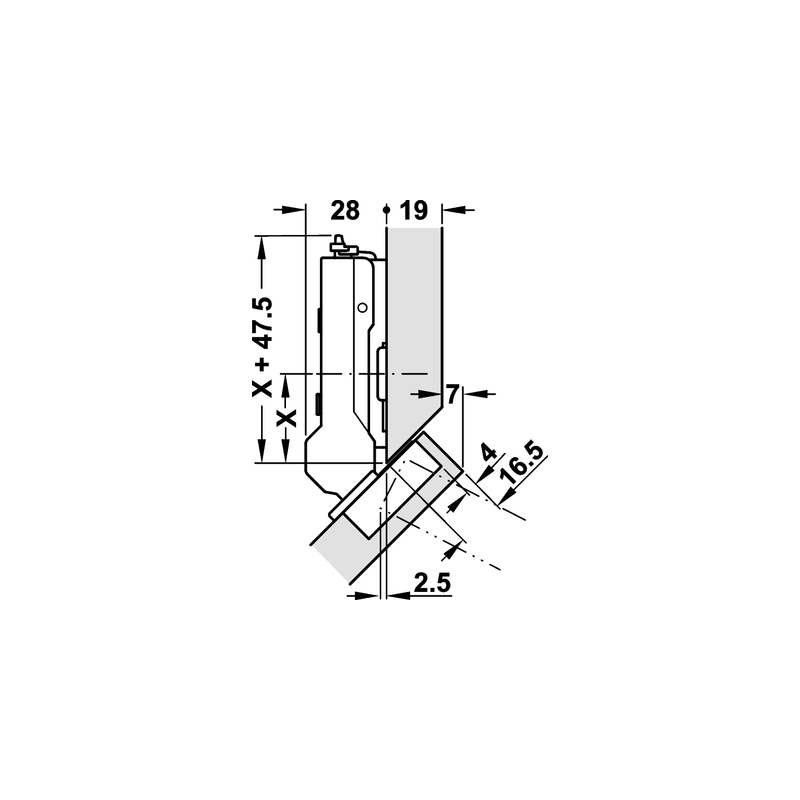

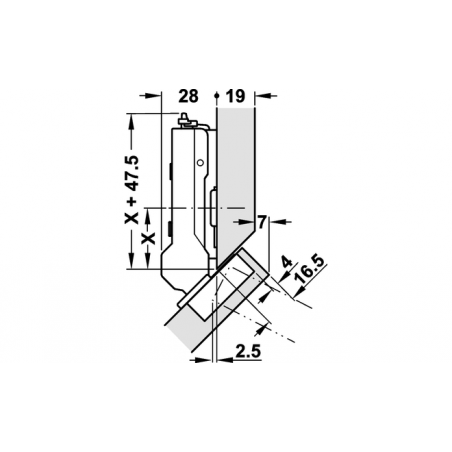

Dimensions and drawings – Grass hinge and plate Tiomos 45° with damperDimensions and drawings – Grass hinge and plate Tiomos 45° with damper

Dimensions in mm, based on the Grass “Hinge Systems” catalogue. F = gap, K = crank (overlay).

34835705
