Grass hinge Tiomos 110° with damper without mounting plate
search
  • Grass hinge Tiomos 110° with damper without mounting plate
  • Grass hinge Tiomos 110° with damper without mounting plate
  • Grass hinge Tiomos 110° with damper without mounting plate

Grass hinge Tiomos 110° with damper without mounting plate

€8.90
Tax included

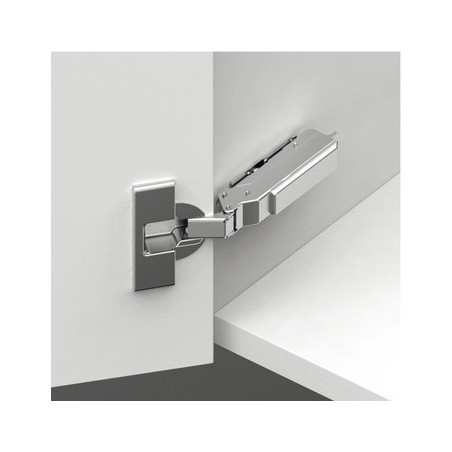

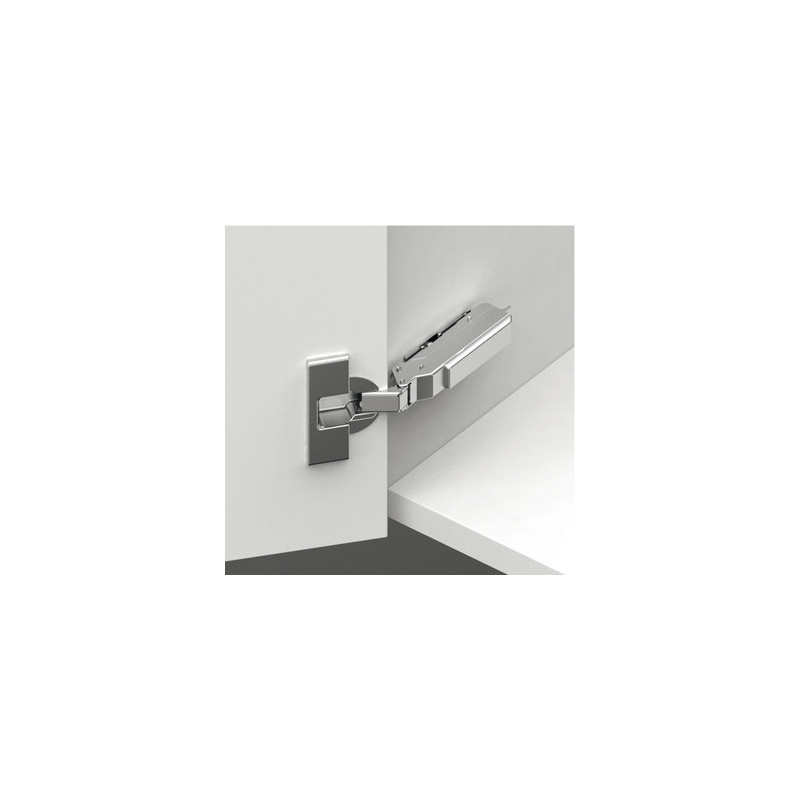

Grass hinge Tiomos 110° with damper without mounting plate. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase. Opening angle 110°, drilling diameter 35 mm.

Quantity
Awaiting supplier / Special order



Safety guarantees

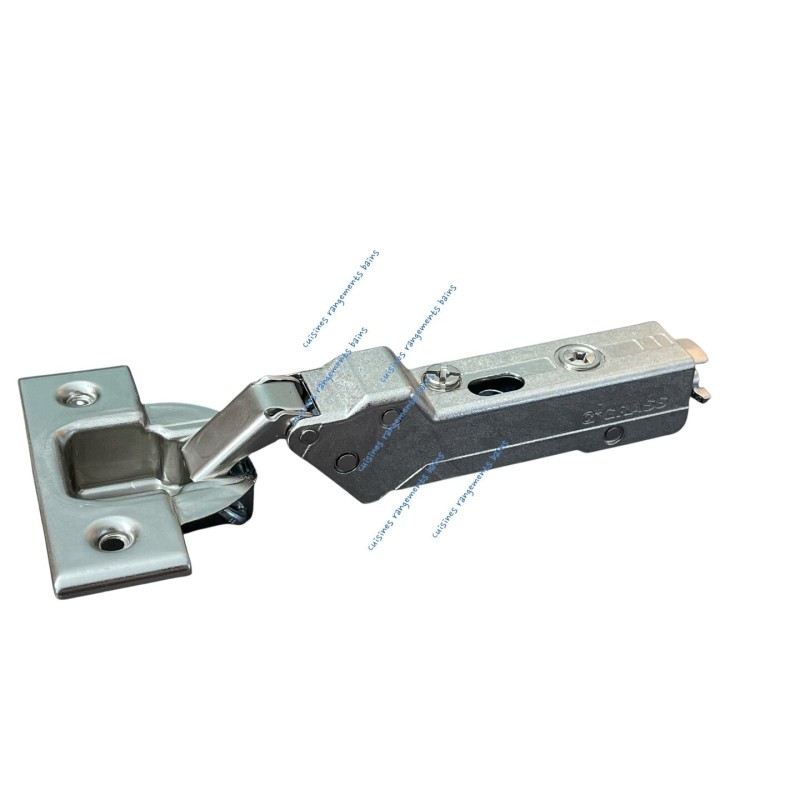

Grass hinge Tiomos 110° with damper without mounting plate, reference 34831702. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

  • Manufacturer : Grass
  • Reference : 34831702
  • Opening angle : 110°
  • Drilling diameter : 35 mm

Check the fixing centre distance and drilling diameter on your existing door. If in doubt, contact us by email info@cuisinesrangementsbains.fr.

Dimensions and drawings

Häfele reference (Grass hinge)348.31.702
RangeTiomos 110
VersionWith integrated damper
Opening angle110°
Door thicknessup to 24 mm (optimum gaps)
Cup drillingØ 35 mm – fixing hole spacing 45 mm (9.5 mm) or 42 mm (Impresso), cup distance 3 to 7 mm
Adjustments3D adjustment with the corresponding mounting plate (depth via worm screw)
CranksK0 full overlay · K3 overlay · K9.5 half overlay · K19 inset
Dimensions and drawings – Grass hinge Tiomos 110° with damper without mounting plateDimensions and drawings – Grass hinge Tiomos 110° with damper without mounting plate

Dimensions in mm, based on the Grass “Hinge Systems” catalogue. F = gap, K = crank (overlay).

34831702
