Mounting plate hinge Grass Tiomos H 03 - Ref. 34838503
search
  • Mounting plate hinge Grass Tiomos H 03 - Ref. 34838503

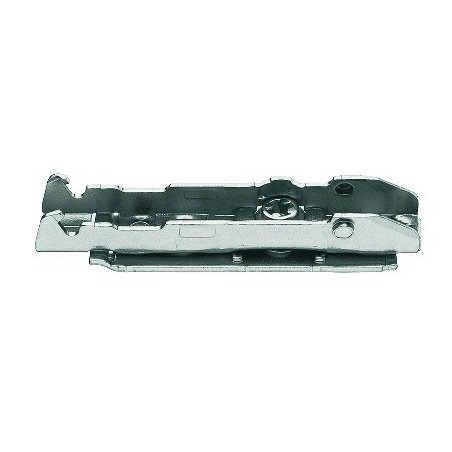

Mounting plate hinge Grass Tiomos H 03

€1.61
Tax included

Mounting plate hinge Grass Tiomos H 03. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase. Drilling diameter 35 mm.

Quantity
Awaiting supplier / Special order



Safety guarantees

Mounting plate hinge Grass Tiomos H 03, reference 34838503. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

  • Manufacturer : Grass
  • Reference : 34838503
  • Drilling diameter : 35 mm

Check the fixing centre distance and drilling diameter on your existing door. If in doubt, contact us by email info@cuisinesrangementsbains.fr.

Dimensions and drawings

Häfele reference348.38.503
Manufacturer designationMounting plate, for Tiomos, screw-on with chipboard or Euro screws
SpecificationsHeight adjustment via worm screw
Spacing3 mm
Manufacturer / distributionHäfele
Dimensions and drawings – Mounting plate hinge Grass Tiomos H 03Dimensions and drawings – Mounting plate hinge Grass Tiomos H 03

Drawings taken from Häfele technical documentation – dimensions in mm.

34838503
