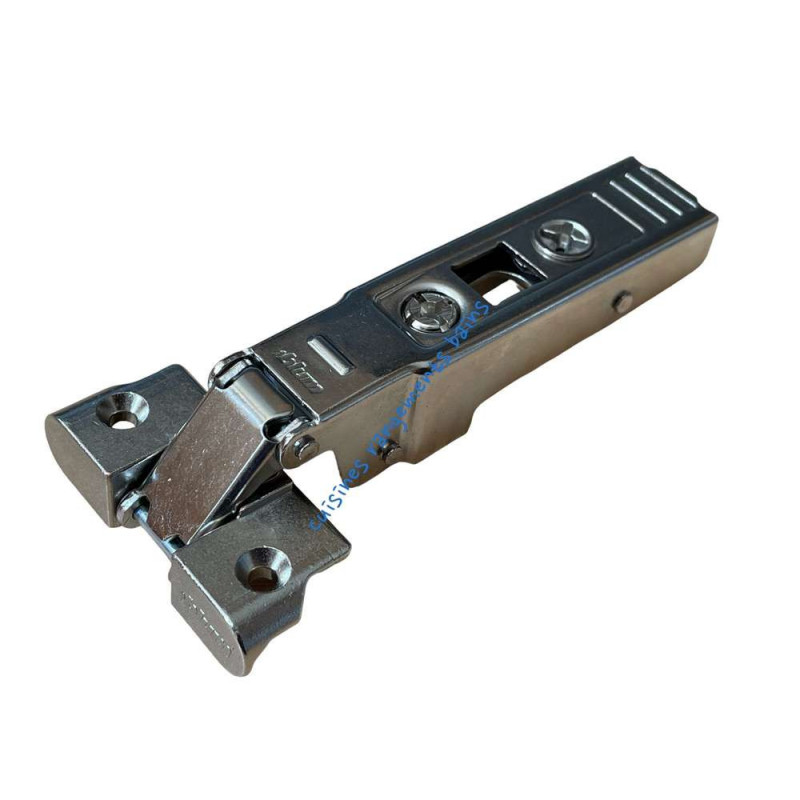

Blum hinge frame aluminium single without mounting plate

€5.10
Tax included

Blum hinge frame aluminium single without mounting plate. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase. Drilling diameter 35 mm.

Quantity
Last items in stock



Safety guarantees

Blum hinge frame aluminium single without mounting plate, reference 34291600. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

  • Manufacturer : Blum
  • Reference : 34291600
  • Drilling diameter : 35 mm

Check the fixing centre distance and drilling diameter on your existing door. If in doubt, contact us by email info@cuisinesrangementsbains.fr.

Dimensions and drawings

Blum reference71T950A (Häfele 342.91.600)
RangeCLIP top (with spring)
TypeCLIP top hinge for aluminium frame door
Opening95°
Frame thickness19 to 22 mm
FixingScrewed into the profile (Ø 7 mm drilling, 90° countersunk)
AdjustmentsHeight ± 3 mm (depending on mounting plate) · lateral ± 2 mm · depth + 3 / − 2 mm
Dimensions and drawings – Blum hinge frame aluminium single without mounting plateDimensions and drawings – Blum hinge frame aluminium single without mounting plate

Dimensions in mm, based on the Blum 2024/2025 catalogue. TB = cup drilling distance · FA = overlay · FD = front thickness · F = gap · MD = mounting plate distance.

34291600
