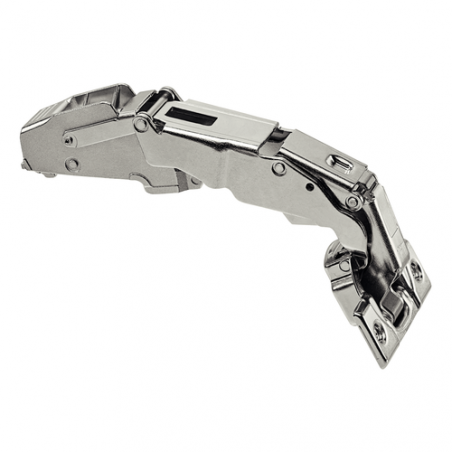

Blum hinge Clip Top 155° screw-on

€7.96
Tax included

Blum hinge Clip Top 155° screw-on. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase. Opening angle 155°, drilling diameter 35 mm.

Quantity
Awaiting supplier / Special order



Safety guarantees

Blum hinge Clip Top 155° screw-on, reference 71T764. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

  • Manufacturer : Blum
  • Reference : 71T764
  • Opening angle : 155°
  • Drilling diameter : 35 mm

Check the fixing centre distance and drilling diameter on your existing door. If in doubt, contact us by email info@cuisinesrangementsbains.fr.

Dimensions and drawings

Blum reference71T764
RangeCLIP top
Opening155°
Cup drillingØ 35 mm, drilling distance TB 3 to 8 mm
Space requirementFull overlay door: space requirement 0
AdjustmentsHeight ± 3 mm (depending on mounting plate) · lateral ± 2 mm · depth + 3 / − 2 mm
Dimensions and drawings – Blum hinge Clip Top 155° screw-onDimensions and drawings – Blum hinge Clip Top 155° screw-on

Dimensions in mm, based on the Blum 2024/2025 catalogue. TB = cup drilling distance · FA = overlay · FD = front thickness · F = gap · MD = mounting plate distance.

71T764
