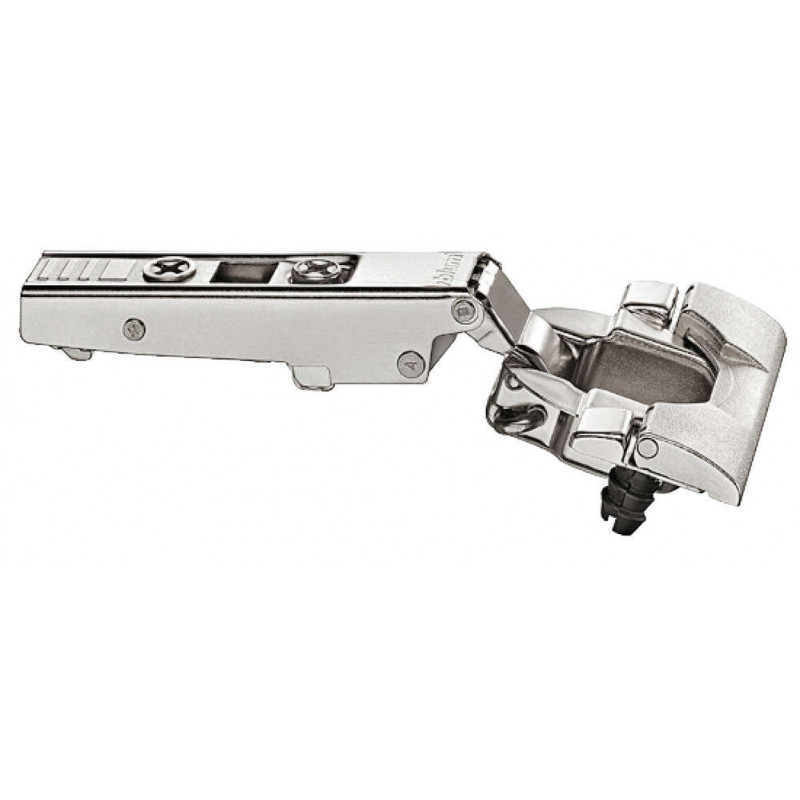

Blum hinge 110 Inserta without mounting plate

€5.78
Tax included

Blum hinge 110 Inserta without mounting plate. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase. Drilling diameter 35 mm.

Quantity
Last items in stock



Safety guarantees

Blum hinge 110 Inserta without mounting plate, reference CHA71B359. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

  • Manufacturer : Blum
  • Reference : CHA71B359
  • Drilling diameter : 35 mm

Check the fixing centre distance and drilling diameter on your existing door. If in doubt, contact us by email info@cuisinesrangementsbains.fr.

Dimensions and drawings

Blum reference71B3590
RangeCLIP top BLUMOTION (integrated damper)
Opening110°
InstallationFull overlay door
Cup drillingØ 35 mm, drilling distance TB 3 to 7 mm
INSERTA fixingØ 8 dowels, hole spacing 45 mm (9.5 mm from cup edge)
AdjustmentsHeight ± 3 mm (depending on mounting plate) · lateral ± 2 mm · depth + 3 / − 2 mm
Cup fixingINSERTA (tool-free)
Dimensions and drawings – Blum hinge 110 Inserta without mounting plateDimensions and drawings – Blum hinge 110 Inserta without mounting plate

Dimensions in mm, based on the Blum 2024/2025 catalogue. TB = cup drilling distance · FA = overlay · FD = front thickness · F = gap · MD = mounting plate distance.

CHA71B359
