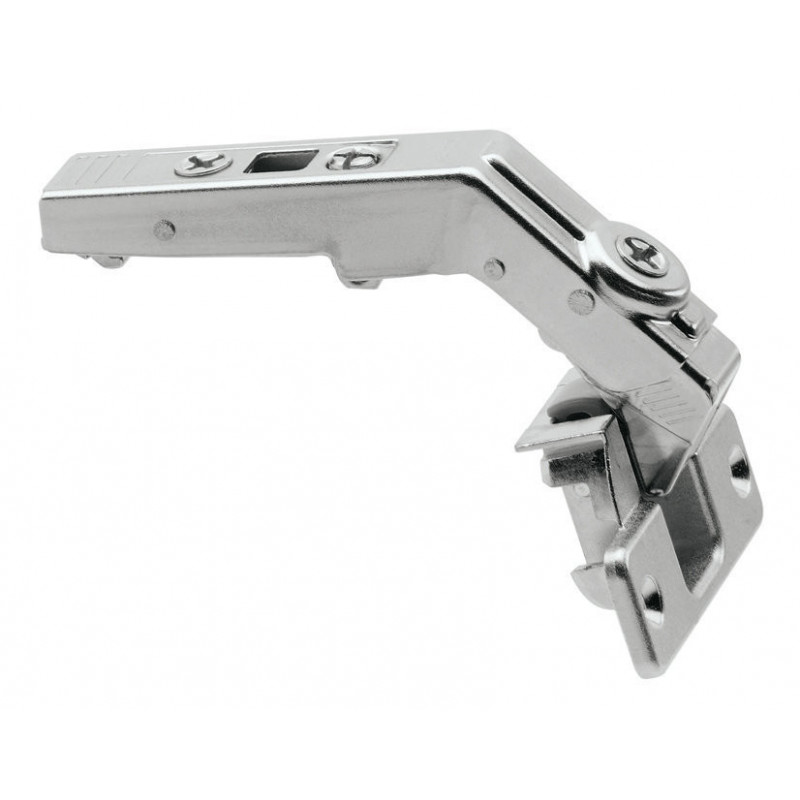

Hinge and mounting plate Blum door folding

€9.95
Tax included

Hinge and mounting plate Blum door folding. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase. Fitting type Folding door, drilling diameter 35 mm.

Quantity
Awaiting supplier / Special order



Safety guarantees

Hinge and mounting plate Blum door folding, reference CHA79T850. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

  • Manufacturer : Blum
  • Reference : CHA79T850
  • Fitting type : Folding door
  • Drilling diameter : 35 mm

Check the fixing centre distance and drilling diameter on your existing door. If in doubt, contact us by email info@cuisinesrangementsbains.fr.

Dimensions and drawings

Blum reference79T8500
RangeCLIP top
TypeHinge for corner cabinet with folding doors
Angle60° between doors
Cup drillingØ 35 mm, drilling distance 12.5 mm
AdjustmentsHeight ± 3 mm · lateral + 3 / − 2 mm · depth ± 2 mm · gap F + 7.2 / − 4.2 mm
Dimensions and drawings – Hinge and mounting plate Blum door foldingDimensions and drawings – Hinge and mounting plate Blum door folding

Dimensions in mm, based on the Blum 2024/2025 catalogue. TB = cup drilling distance · FA = overlay · FD = front thickness · F = gap · MD = mounting plate distance.

CHA79T850
