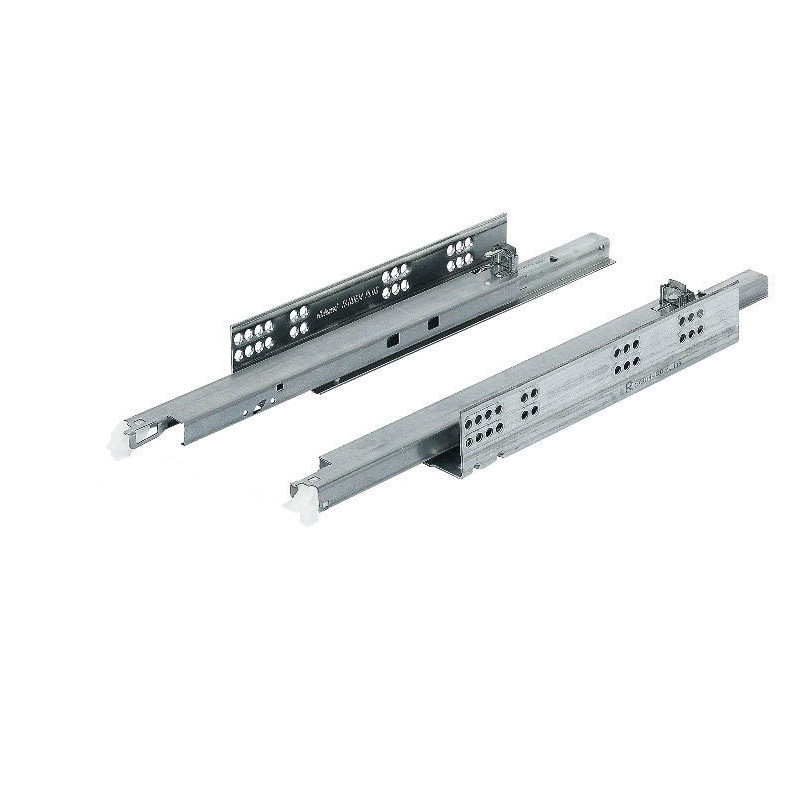

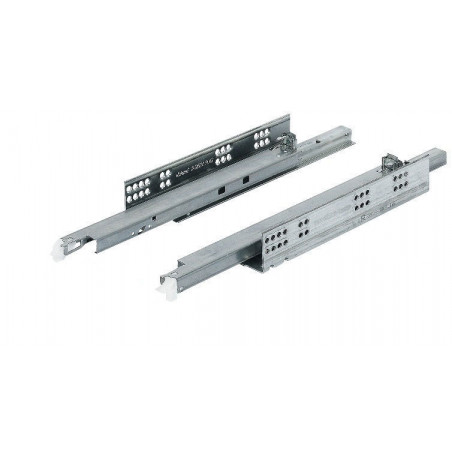

Blumotion drawer runner with damper 500 MM

€32.50
Tax included

Blumotion drawer runner with damper 500 MM. Ensures a soft, silent close on cabinet doors.

Quantity
Awaiting supplier / Special order



Safety guarantees

Blumotion drawer runner with damper 500 MM, reference COU560H500B. Ensures a soft, silent close on cabinet doors.

  • Manufacturer : Blum
  • Reference : COU560H500B

Fast delivery across Europe. Contact us: +33 2 32 89 59 01.

Dimensions and drawings

Blum reference560H5000B
Nominal length (NL)500 mm
TypeTANDEM concealed undermount runner, full extension with integrated BLUMOTION soft-close
Dynamic load30 kg
DrawerWooden drawer, sides 11 to 16 mm thick
Drawer internal widthSKW = LW − 42 mm (LW = cabinet internal width)
Drawer lengthSKL = NL − 10 mm
Space requirementMin. height below drawer 27.5 mm (full extension) / 24.5 mm (partial extension)
AdjustmentsTool-free height adjustment via locking device · integrated front tilt adjustment · width and depth tolerance compensation
AccessoriesLocking devices T51.1700.04 (left/right) – SERVO-DRIVE compatible
Dimensions and drawings – Blumotion drawer runner with damper 500 MMDimensions and drawings – Blumotion drawer runner with damper 500 MM

Dimensions in mm, based on the Blum 2024/2025 catalogue. NL = nominal runner length.

COU560H500B
