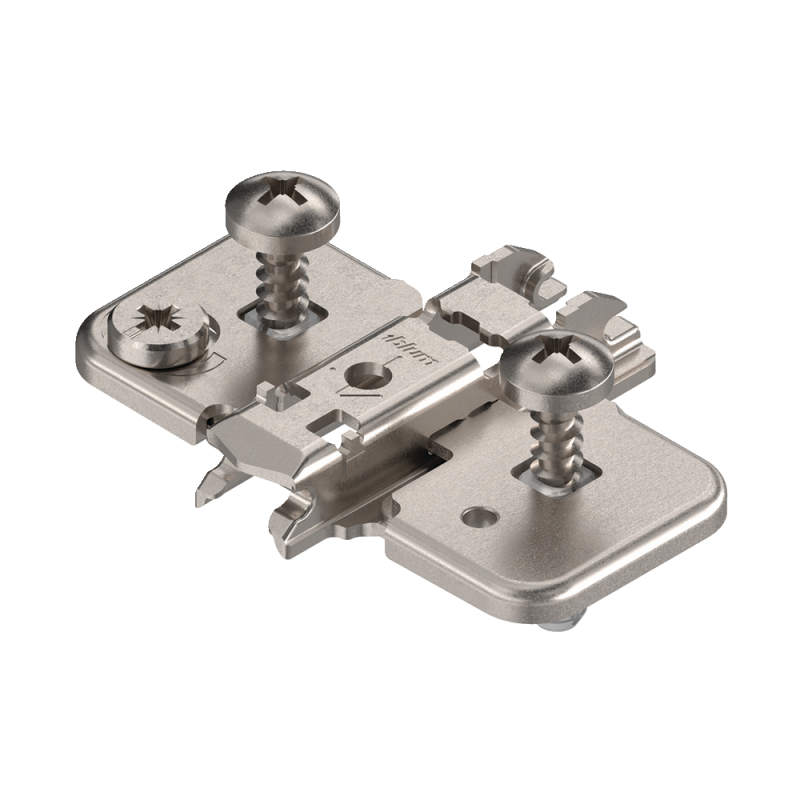

Blum mounting plate Expando H03

€0.90
Tax included

Blum mounting plate Expando H03. Suitable for European 32 mm system furniture, adjustable in height and depth.

Quantity
Awaiting supplier / Special order



Safety guarantees

Blum mounting plate Expando H03, reference EMB174713. Suitable for European 32 mm system furniture, adjustable in height and depth.

  • Manufacturer : Blum
  • Reference : EMB174713

Fast delivery across Europe. Contact us: +33 2 32 89 59 01.

Dimensions and drawings

Blum reference174H7130E
TypeCruciform mounting plate 37/32 with eccentric adjustment (CLIP)
Drilling hole spacing37 × 32 mm (cruciform mounting plate)
MaterialSteel
FixingPre-mounted special screws with EXPANDO dowels
Height adjustmentEccentric, ± 2 mm
Height11.5 mm (distance 3)
Dimensions and drawings – Blum mounting plate Expando H03

Dimensions in mm, based on the Blum 2024/2025 catalogue. H = mounting plate height.

EMB174713
