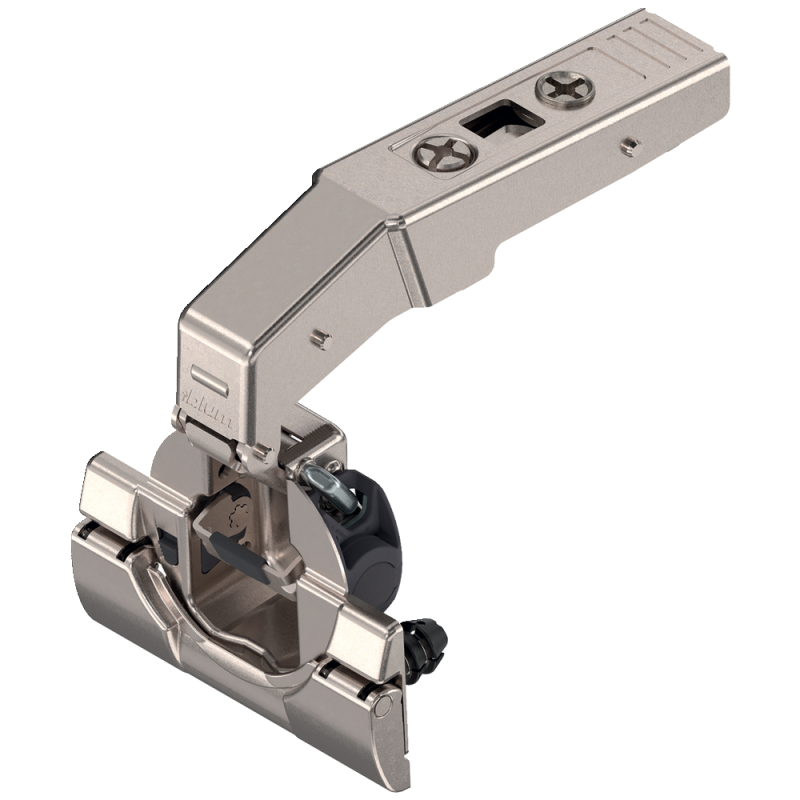

Blum hinge Clip Top for door Dans Prolongement

€9.50
Tax included

Blum hinge Clip Top for door Dans Prolongement. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

Quantity
Awaiting supplier / Special order



Safety guarantees

Blum hinge Clip Top for door Dans Prolongement, reference CHA79B9550. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

  • Manufacturer : Blum
  • Reference : CHA79B9550

Fast delivery across Europe. Contact us: +33 2 32 89 59 01.

Dimensions and drawings

Blum reference79B9550
RangeCLIP top BLUMOTION (integrated damper)
TypeHinge for flush (inset) door
InstallationFlush door
Opening95°
Cup drillingØ 35 mm, drilling distance TB 3 to 7 mm
Mounting plateStandard 3 mm mounting plate, offset 15.5 mm from frame edge · F = 8 mm − TB
AdjustmentsHeight ± 3 mm (depending on mounting plate) · lateral ± 2.5 mm · depth ± 1 mm
Cup fixingScrew-on
Dimensions and drawings – Blum hinge Clip Top for door Dans ProlongementDimensions and drawings – Blum hinge Clip Top for door Dans Prolongement

Dimensions in mm, based on the Blum 2024/2025 catalogue. TB = cup drilling distance · FA = overlay · FD = front thickness · F = gap · MD = mounting plate distance.

CHA79B9550
