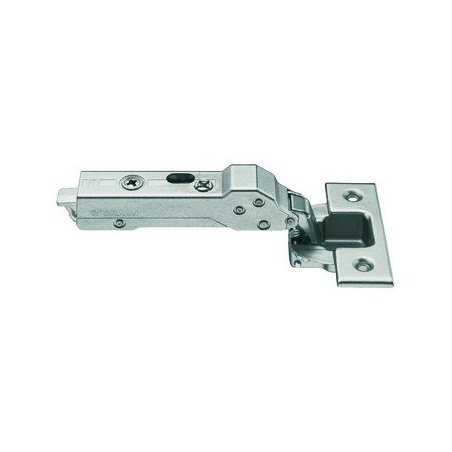

Grass hinge and plate Tiomos without damper

€8.90
Tax included

Grass hinge and plate Tiomos without damper. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase. Drilling diameter 35 mm.

Quantity
Awaiting supplier / Special order



Safety guarantees

Grass hinge and plate Tiomos without damper, reference 34835501. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

  • Manufacturer : Grass
  • Reference : 34835501
  • Drilling diameter : 35 mm

Check the fixing centre distance and drilling diameter on your existing door. If in doubt, contact us by email info@cuisinesrangementsbains.fr.

Dimensions and drawings

Häfele reference (Grass hinge)348.35.501
RangeTiomos 110/45 (45° corner cabinet)
VersionWithout damper, supplied with mounting plate
Application45° angled cabinets
Opening angle110°
Cup drillingØ 35 mm – fixing hole spacing 45 mm (9.5 mm) or 42 mm (Impresso)
Adjustments3D adjustment with the corresponding mounting plate (depth via worm screw)
Dimensions and drawings – Grass hinge and plate Tiomos without damperDimensions and drawings – Grass hinge and plate Tiomos without damper

Dimensions in mm, based on the Grass “Hinge Systems” catalogue. F = gap, K = crank (overlay).

34835501
