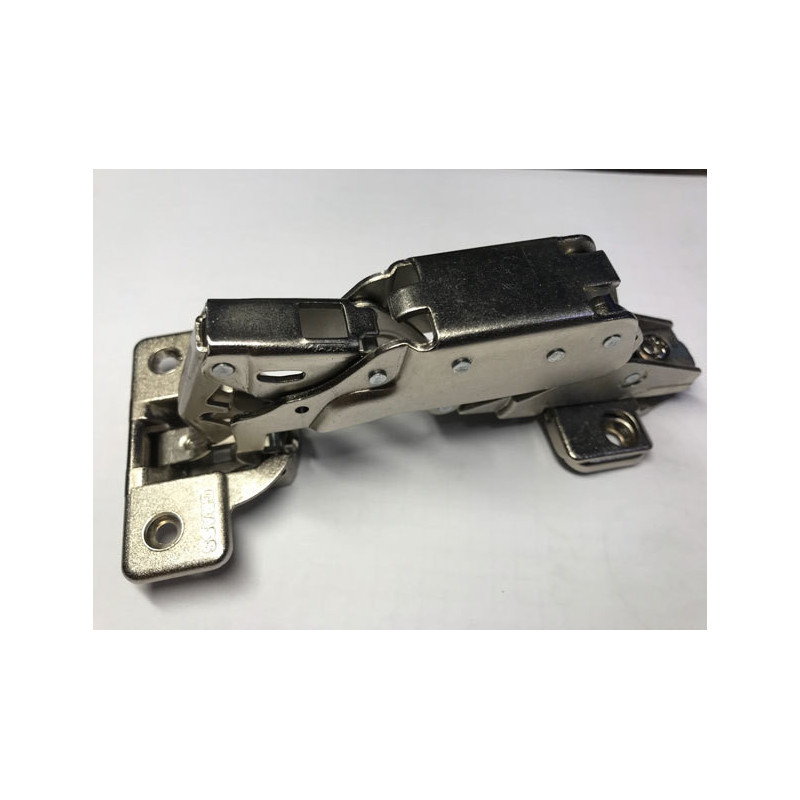

Grass hinge Nexis 170 ° with mounting plate Clips
search
  • Grass hinge Nexis 170 ° with mounting plate Clips
  • Grass hinge Nexis 170 ° with mounting plate Clips
  • Grass hinge Nexis 170 ° with mounting plate Clips

Grass hinge Nexis 170 ° with mounting plate Clips

€13.45
Tax included

Grass hinge Nexis 170 ° with mounting plate Clips. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase. Opening angle 170°, drilling diameter 35 mm.

Quantity
Awaiting supplier / Special order



Safety guarantees

Grass hinge Nexis 170 ° with mounting plate Clips, reference F015072951217. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

  • Manufacturer : Grass
  • Reference : F015072951217
  • Opening angle : 170°
  • Drilling diameter : 35 mm

Check the fixing centre distance and drilling diameter on your existing door. If in doubt, contact us by email info@cuisinesrangementsbains.fr.

Dimensions and drawings

Grass referenceF015072951217
RangeNexis 170
Opening angle170°
Door thicknessup to 26 mm (optimum gaps)
Cup depth11 mm (suitable for postformed doors)
Cup drillingØ 35 mm – hole spacing 48 mm (9 mm from edge)
Special featuresZero protrusion with door open at 90° · finger protection · Soft-close compatible
Adjustments3D adjustment with the corresponding mounting plate
Dimensions and drawings – Grass hinge Nexis 170 ° with mounting plate ClipsDimensions and drawings – Grass hinge Nexis 170 ° with mounting plate Clips

Dimensions in mm, based on the Grass “Hinge Systems” catalogue. F = gap, K = crank (overlay).

F015072951217
