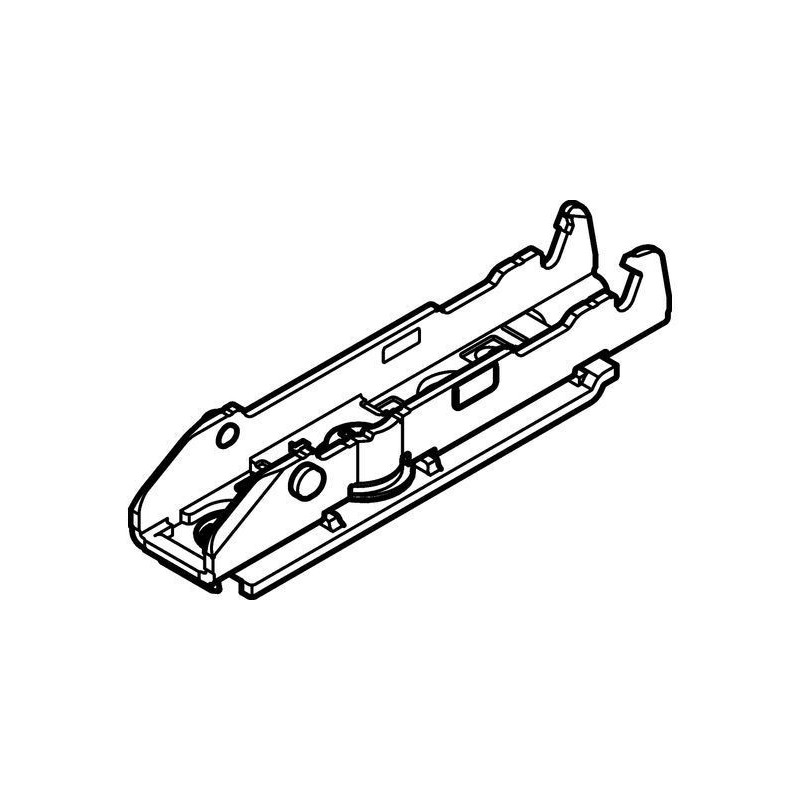

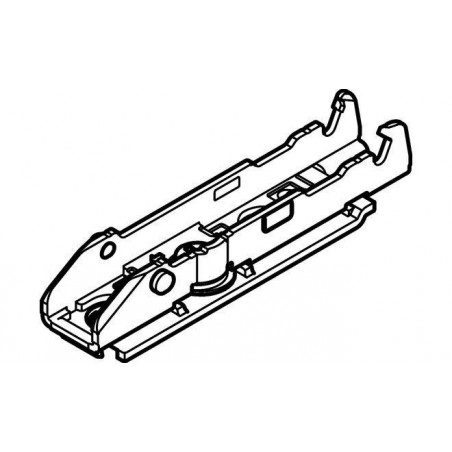

Tiomos mounting plate Grass H02

€1.15
Tax included

Tiomos mounting plate Grass H02. Suitable for European 32 mm system furniture, adjustable in height and depth.

Quantity
Last items in stock



Safety guarantees

Tiomos mounting plate Grass H02, reference F059139702. Suitable for European 32 mm system furniture, adjustable in height and depth.

  • Manufacturer : Grass
  • Reference : F059139702

Fast delivery across Europe. Contact us: +33 2 32 89 59 01.

Dimensions and drawings

Grass referenceF059139702
RangeTiomos – 1D linear mounting plate, 2-point fixing
VersionHeight 2 mm
MaterialNickel-plated steel
FixingWood screws Ø 3.5 × 15 mm or Euro screws Ø 6.3 × 13.5 mm
Hole spacing20/32 mm
AdjustmentsHeight ± 2 mm (worm screw) · lateral ± 2 mm · depth + 3 / − 2 mm (via hinge)
Dimensions and drawings – Tiomos mounting plate Grass H02

Dimensions in mm, based on the Grass “Hinge Systems” catalogue. F = gap, K = crank (overlay).

F059139702
