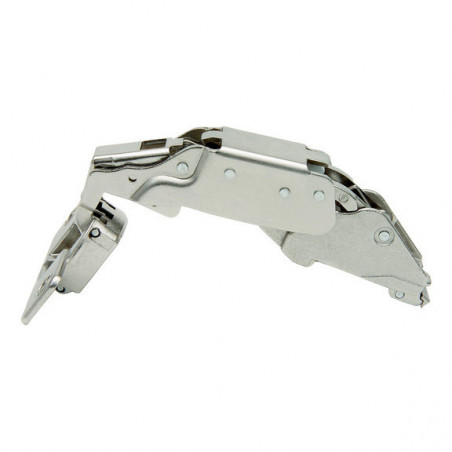

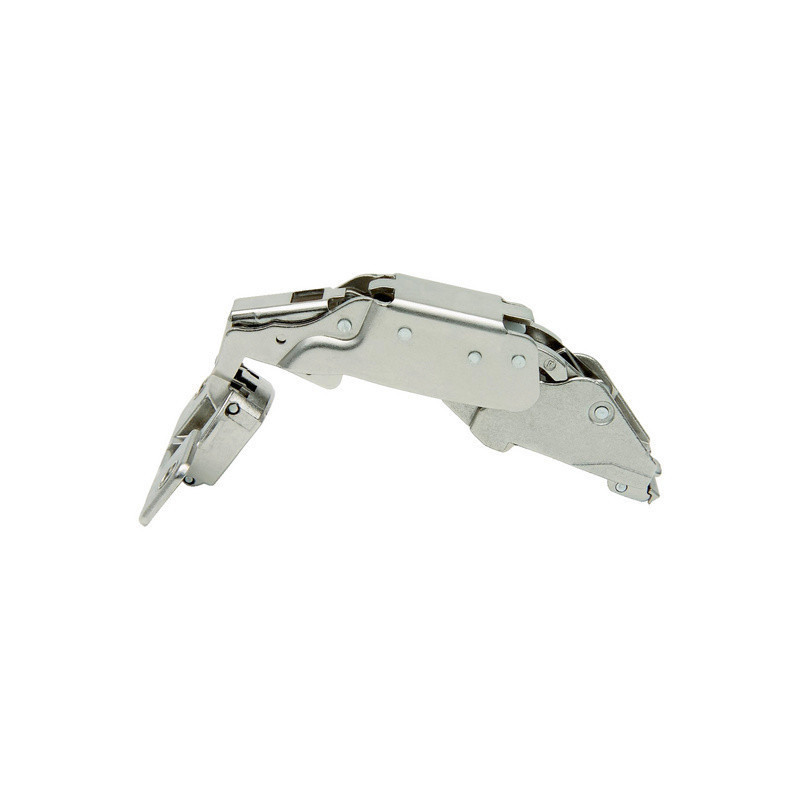

Grass hinge Nexis 170° clip-on with mounting plate

€18.40
Tax included

Grass hinge Nexis 170° clip-on with mounting plate. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase. Opening angle 170°, drilling diameter 35 mm.

Quantity
Last items in stock



Safety guarantees

Grass hinge Nexis 170° clip-on with mounting plate, reference F015072713. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

  • Manufacturer : Grass
  • Reference : F015072713
  • Opening angle : 170°
  • Drilling diameter : 35 mm

Check the fixing centre distance and drilling diameter on your existing door. If in doubt, contact us by email info@cuisinesrangementsbains.fr.

Dimensions and drawings

Grass referenceF015072713
RangeNexis 170
VersionClip-on, with mounting plate
Opening angle170°
Door thicknessup to 26 mm (optimum gaps)
Cup depth11 mm (suitable for postformed doors)
Cup drillingØ 35 mm – hole spacing 48 mm (9 mm from edge)
Special featuresZero protrusion with door open at 90° · finger protection · Soft-close compatible
Adjustments3D adjustment with the corresponding mounting plate
Dimensions and drawings – Grass hinge Nexis 170° clip-on with mounting plateDimensions and drawings – Grass hinge Nexis 170° clip-on with mounting plate

Dimensions in mm, based on the Grass “Hinge Systems” catalogue. F = gap, K = crank (overlay).

F015072713
