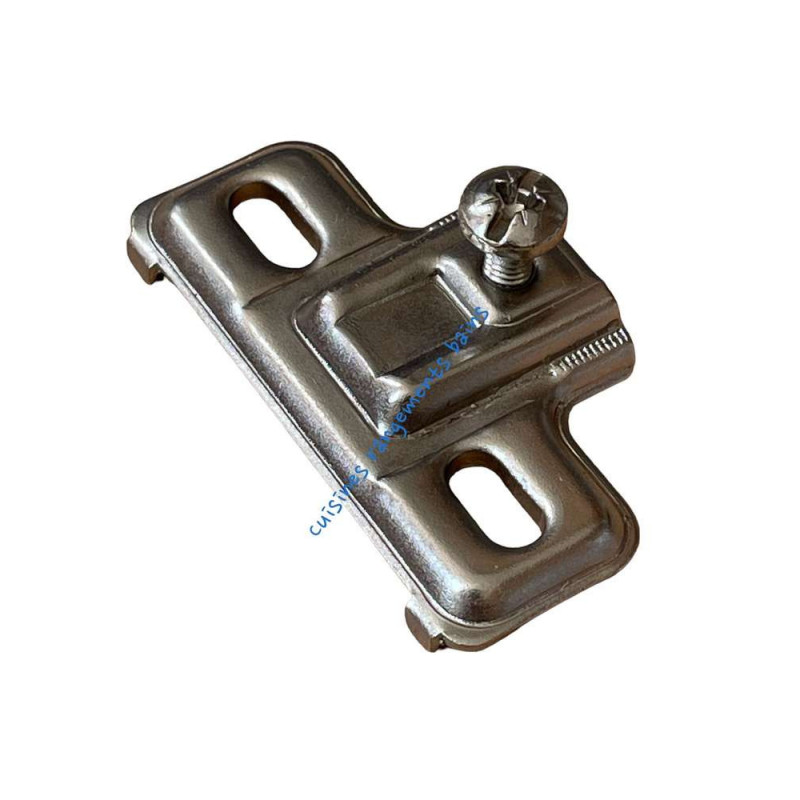

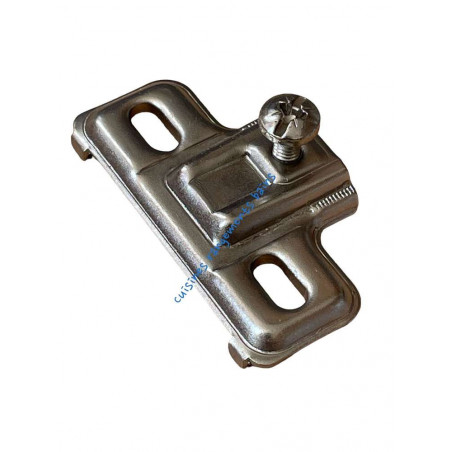

Ferrari mounting plate frame for hinge Cha500790

€1.25
Tax included

Ferrari mounting plate frame for hinge Cha500790. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase. Drilling diameter 35 mm.

Quantity
EN STOCK

The minimum purchase order quantity for the product is 2.



Safety guarantees

Ferrari mounting plate frame for hinge Cha500790, reference EMB0611. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

  • Manufacturer : Ferrari
  • Reference : EMB0611
  • Drilling diameter : 35 mm

Check the fixing centre distance and drilling diameter on your existing door. If in doubt, contact us by email info@cuisinesrangementsbains.fr.

Dimensions and drawings

Manufacturer referenceB0611 (Ferrari Compacta 50)
TypeMounting plate for Compacta 50 hinge (face frame)
HeightsH 3.0 · 4.5 · 6.5 mm (with tabs) · 20 mm (without tabs, B0611ZG20L7)
FixingScrews Ø 4 × 16
Hole spacing32 mm
Compatible hingeCHA500790 (H500790GGN)
Dimensions and drawings – Ferrari mounting plate frame for hinge Cha500790

Dimensions in mm (and inches), based on the Ferrari Compacta catalogue. H = mounting plate height · D = cup drilling distance · S = overlay · F = gap.

EMB0611
