Damper spare Blum Aventos Force 1

€5.10
Tax included

Damper spare Blum Aventos Force 1. Ensures a soft, silent close on cabinet doors.

Quantity
Awaiting supplier / Special order

The minimum purchase order quantity for the product is 2.



Safety guarantees

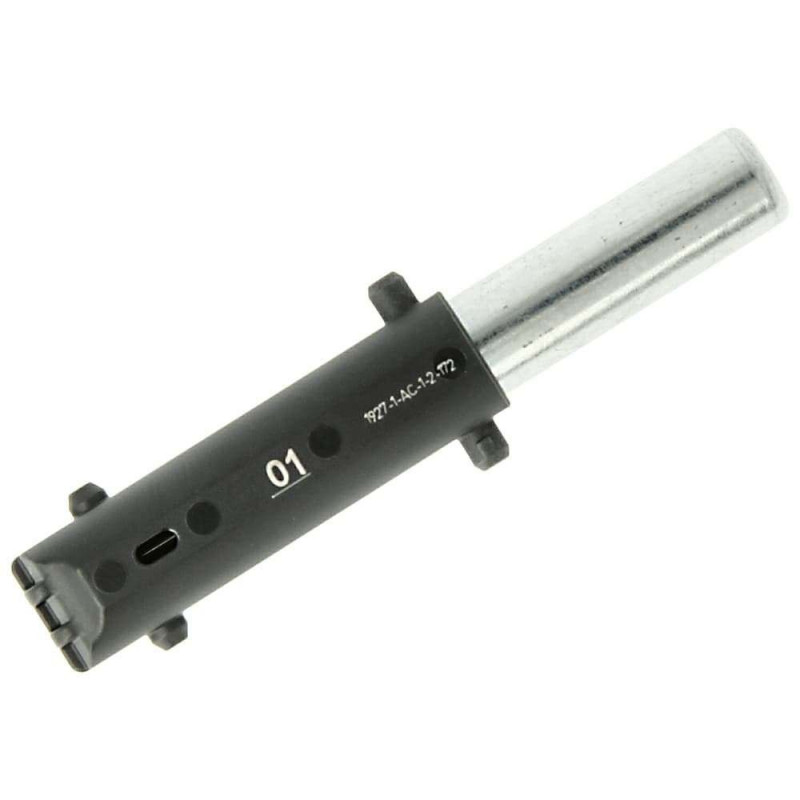

Genuine Blum BLUMOTION replacement damper, type 01 (ref. 22K2014), for AVENTOS HF, HS and HL lift systems made before 2023. It restores soft, silent closing of the flap when the old damper is worn out.

  • Marked “01” on the damper body – Blum ident no. 6281722
  • Fits lift mechanisms: 20S2C0x (AVENTOS HS), 20S2E0x (AVENTOS HS), 20S2G0x (AVENTOS HS), 20L250x (AVENTOS HL)
  • Clips into the 20F205-40 damper holder (replaces 20F200-40)
  • Sold individually: one damper per lift mechanism, i.e. 2 for a flap with 2 mechanisms
  • Replaced in a few minutes with a flat screwdriver, without removing the flap
  • The current model is cylindrical and replaces the former square model without any problem

How to choose the right damper?

Choose according to the number of the lift mechanism, printed on the yellow label visible once the cover is removed – not according to the old damper. Only the first 6 characters count, and the 4th may be a digit or an x (20S2E0x = 20SxE0x). Example: 20F2204.01 → 20F220x → 22K2044 (type 04).

SystemLift mechanismDamper
AVENTOS HF20F220x22K2044 (04)
20F250x22K2034 (03)
20F280x22K2044 (04)
AVENTOS HS20S2A0x22K2024 (02)
20S2B0x22K2024 (02)
20S2C0x22K2014 (01) ◄
20S2D0x22K2024 (02)
20S2E0x22K2014 (01) ◄
20S2F0x22K2034 (03)
20S2G0x22K2014 (01) ◄
20S2H0x22K2034 (03)
20S2I0x22K2034 (03)
AVENTOS HL20L210x22K2024 (02)
20L230x22K2024 (02)
20L250x22K2014 (01) ◄
20L270x22K2034 (03)
20L290x22K2034 (03)
BLUMOTION 22K2014 22K2024 22K2034 22K2044 AVENTOS

Specifications

ManufacturerBlum (Austria)
SystemAVENTOS HF / HS / HL (up to 2023)
DamperBLUMOTION 01
Blum reference22K2014
Blum ident no.6281722
Damper holder20F205-40 (replaces 20F200-40)
Packagingsingle piece

Replacing the damper

  1. Remove the cover cap
  2. Push the damper forwards with a flat screwdriver
  3. Lever it out downwards
  4. Pre-tension the new damper by hand and insert it
  5. Close the front: the damper clicks into place
  6. Check that it works correctly

📄 Download the illustrated instructions (PDF)
