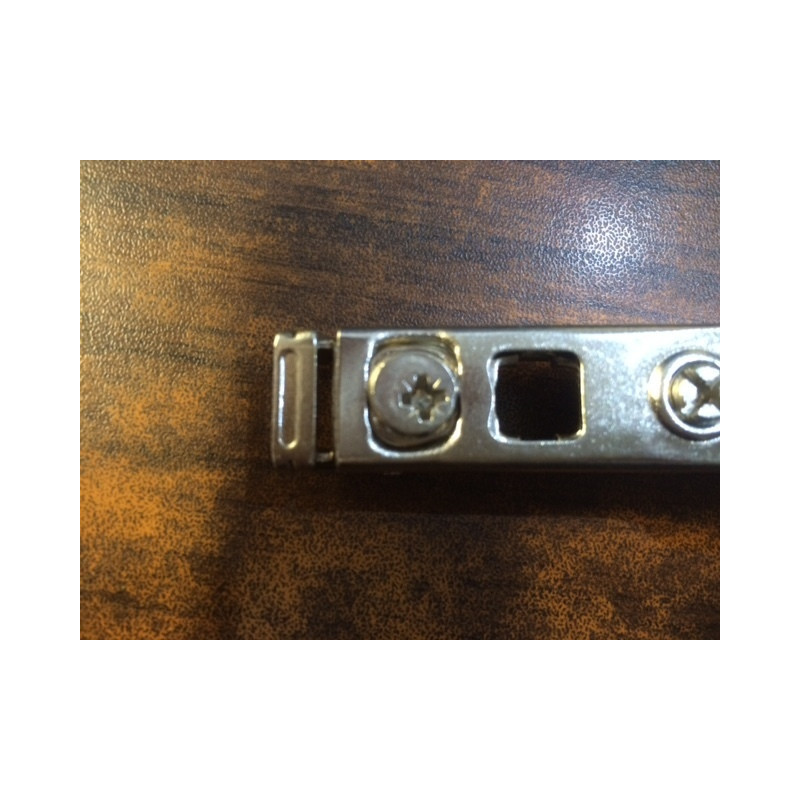

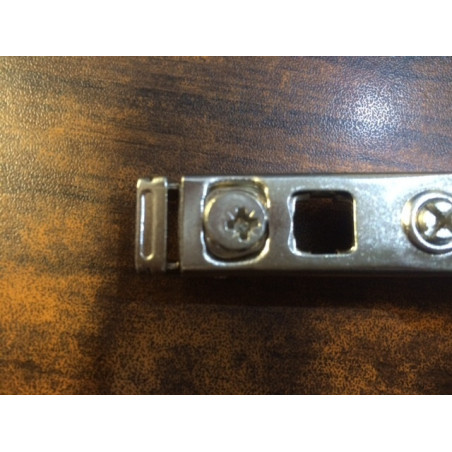

Ferrari hinge cranked arm EA 52 push-in without mounting plate

€3.00
Tax included

Ferrari hinge cranked arm EA 52 push-in without mounting plate. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase. Drilling diameter 35 mm.

Quantity
Last items in stock



Safety guarantees

Ferrari hinge cranked arm EA 52 push-in without mounting plate, reference H91099BGGWS. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

  • Manufacturer : Ferrari
  • Reference : H91099BGGWS
  • Drilling diameter : 35 mm

Check the fixing centre distance and drilling diameter on your existing door. If in doubt, contact us by email info@cuisinesrangementsbains.fr.

Dimensions and drawings

Manufacturer referenceH91099BGGWS (Ferrari)
TypeAnyway Clip hinge Ø 35 mm
Opening110°
ArmCrank 9 (half overlay)
Mounting plate heightH = 8 + D − S
Fixing hole spacing A52 mm (B = 5.5 mm)
Cup fixingPress-in dowels Ø8/10 mm
Depth adjustmentBy cam
ClipWS (metal clip)
Dimensions and drawings – Ferrari hinge cranked arm EA 52 push-in without mounting plate

Dimensions in mm, based on the Ferrari catalogue. H = mounting plate height · D = cup drilling distance · S = overlay · F = gap · T = door thickness.

H91099BGGWS
