Salice hinge Silentio 110° mounting Rapide. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase. Opening angle 110°, drilling diameter 35 mm.
Safety guarantees
Salice hinge Silentio 110° mounting Rapide, reference 32917630. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

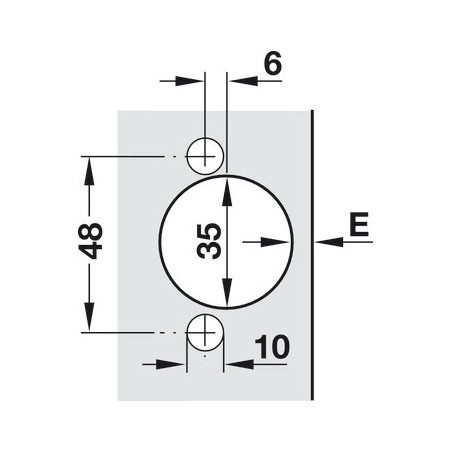

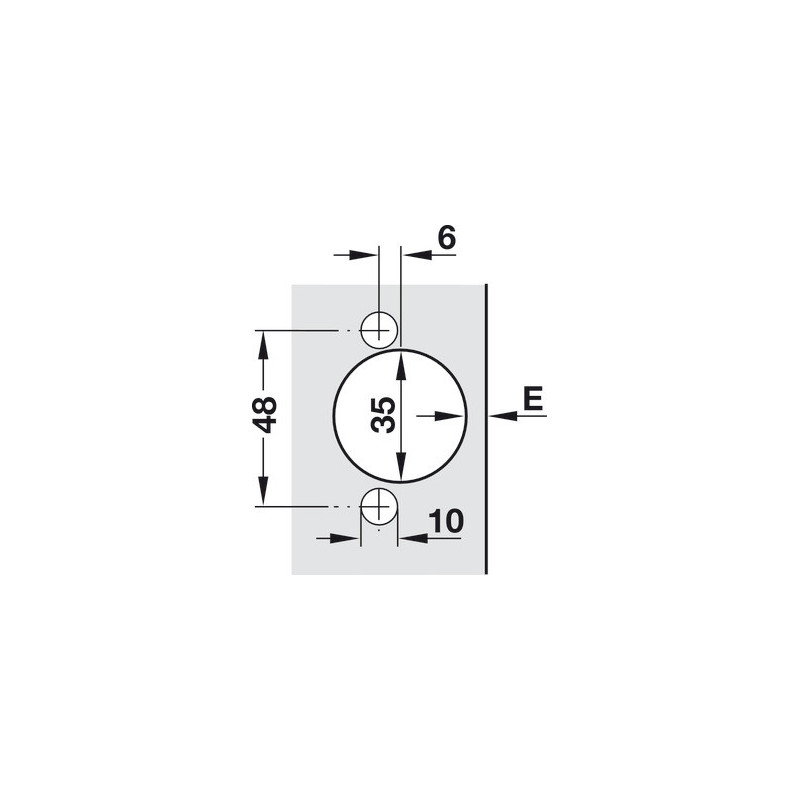

Check the fixing centre distance and drilling diameter on your existing door. If in doubt, contact us by email info@cuisinesrangementsbains.fr.
| Häfele reference | 329.17.630 (Salice hinge) |
|---|---|
| Range | Salice Silentia Series 700 (damper integrated in cup) |
| Opening | 110° |
| Fixing | Quick assembly |
| Cup | Ø 35 mm, depth 13.5 mm |
| Door thickness | 16 mm minimum |
| Drilling distance K | 3 to 6 mm |
| Mounting plate height H | Arm 0: H = 15 + K − D · Arm 5: H = 10 + K − D · Arm 9: H = 6 + K − D · Arm 17: H = −2 + K + A |

Dimensions in mm, based on the Salice catalogue. H = mounting plate height · K = cup drilling distance · D = overlay · A = gap · T = door thickness · L = setback.
