Salice hinge negative angle door without mounting plate EA 52 MM
search
  • Salice hinge negative angle door without mounting plate EA 52 MM
  • Salice hinge negative angle door without mounting plate EA 52 MM

Salice hinge negative angle door without mounting plate EA 52 MM

€3.30
Tax included

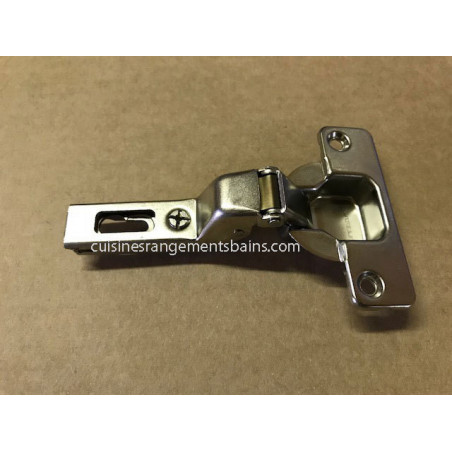

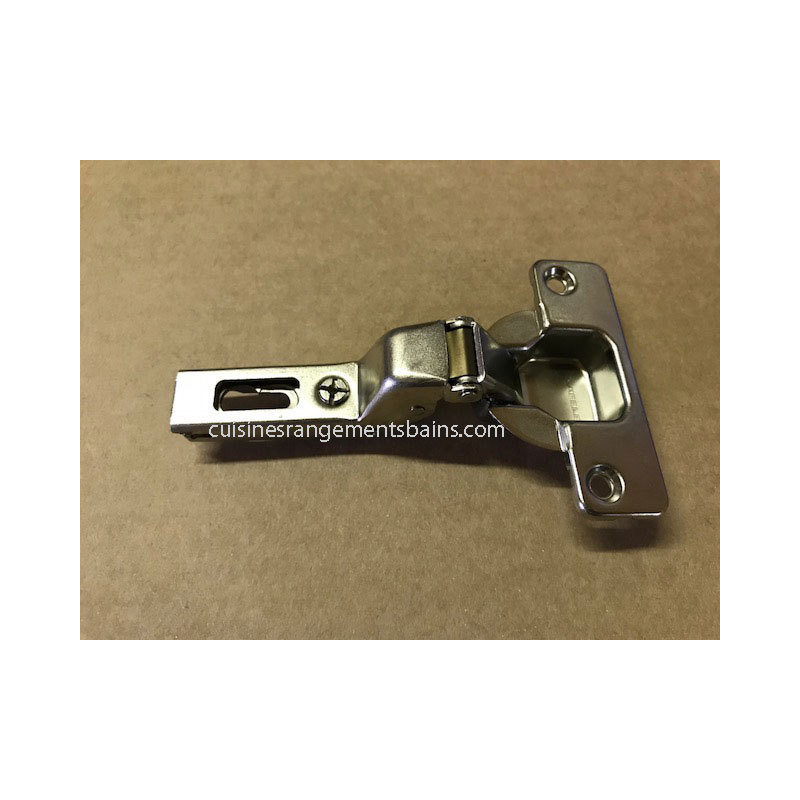

Salice hinge negative angle door without mounting plate EA 52 MM. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase. Fitting type Inset door, fixing centres 52 mm, drilling diameter 35 mm.

Quantity
Awaiting supplier / Special order



Safety guarantees

Salice hinge negative angle door without mounting plate EA 52 MM, reference 32917643. Direct replacement for kitchen, bathroom and storage cabinet doors, without altering the carcase.

  • Manufacturer : Salice
  • Reference : 32917643
  • Fitting type : Inset door
  • Fixing centres : 52 mm
  • Drilling diameter : 35 mm

Check the fixing centre distance and drilling diameter on your existing door. If in doubt, contact us by email info@cuisinesrangementsbains.fr.

Dimensions and drawings

Häfele reference329.17.643 (Salice hinge)
RangeSalice Series 200, with spring
Opening110°
Fixing hole spacing52 mm
Arm17 (inset door) · H = −2 + K + A
CupØ 35 mm, depth 11 mm
Drilling distance K3 to 6 mm
Mounting plate height HArm 0: H = 15 + K − D · Arm 5: H = 10 + K − D · Arm 9: H = 6 + K − D · Arm 17: H = −2 + K + A
Dimensions and drawings – Salice hinge negative angle door without mounting plate EA 52 MM

Dimensions in mm, based on the Salice catalogue. H = mounting plate height · K = cup drilling distance · D = overlay · A = gap · T = door thickness · L = setback.

32917643
